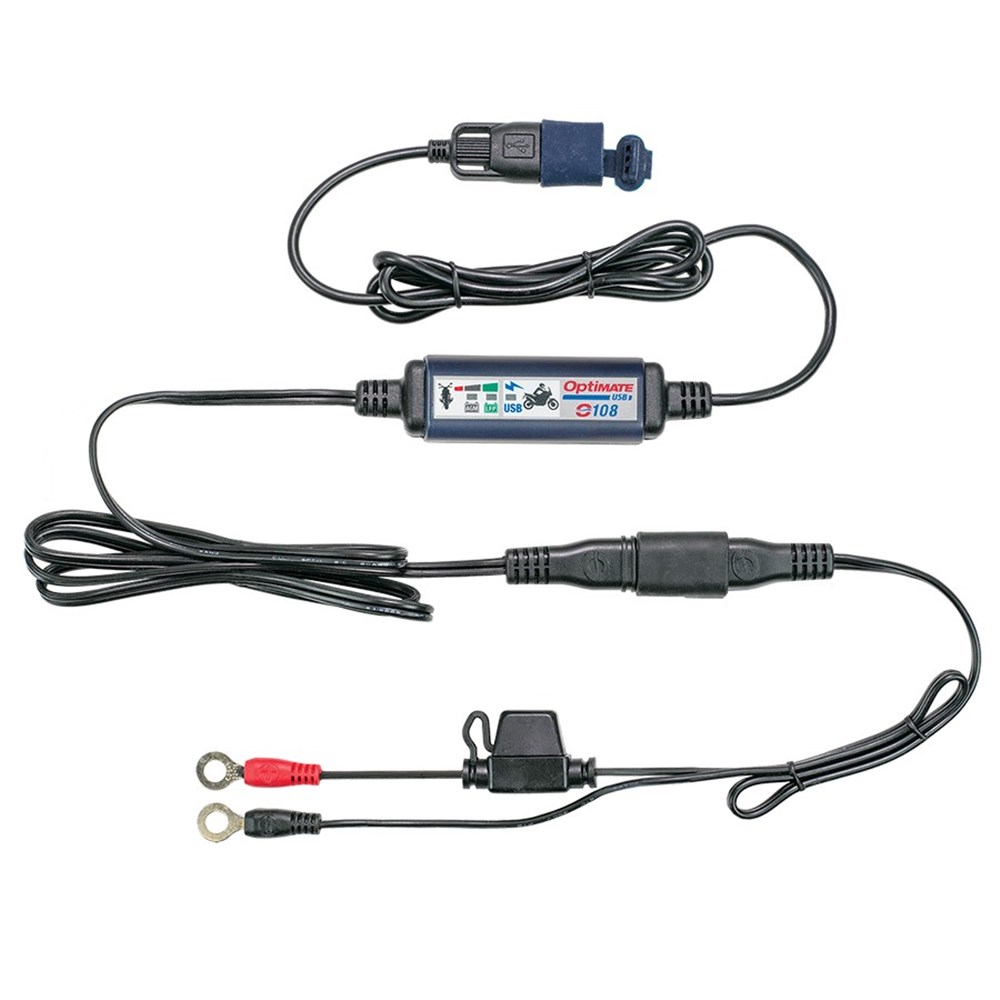

OptiMate USB O-108KIT
Smart in-line 3300mA USB charger kit, with standby mode and vehicle battery monitor.
The sealed in-line battery to USB 3300mA charger with 150cm / 60? of cable and O-31 battery lead, delivers safe and fast USB charging of any device mounted outside on the handlebar or inside your tank or pannier – Cable routes to where USB charging is needed!
Supply cable (100cm / 40?) with M6 / 1/4? rings fit all powersport battery terminals. – Fuse protected.
• Charges 1x USB device with up to 3300mA current available (or get optional O-110 USB splitter and charge 2 devices). – Charge current adapts to connected device for safe recharging.
• Weatherproof USB charge port easily zip-tie to handlebar, strut or even brake / clutch cable – Seals against inserted USB cable for charging in any weather!
• Built in protection turns off USB charging & prevents your parked vehicle’s LFP (LiFePO4) or AGM (Pb)battery from draining – Starts back up when vehicle engine fires up.
• Monitors and displays parked vehicle’s battery status – Indicates battery is ‘start ready’ at the blink of an LED!
OPERATION: fully automatic
• Vehicle battery protection: Low input (<12.4V) auto-off protects vehicle battery from total discharge. Supply range: 12.4 to 16Vdc.
• Turns on if vehicle battery voltage increases above 13.3V.
• 2 LED battery monitor
• Short circuit, overheat, over-voltage protection. O-31 battery lead includes in-line fuse.
OPERATION (Voltage):
• USB ON - 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.
• USB 1 HOUR - 12.4V to 13.3V – 1-hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V.
• STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.
• AGM / LFP MONITOR - LED blink every 5 seconds if battery charge = 50% , sufficient to start vehicle engine.
• LED LFP: 13.1V to 13.3V.
• LED AGM: 12.4V to 13.1V.
• NO LED < 12.4V.
• OFF = 9V
• LENGTH: 60" / 150cm + 20" / 50 cm O-31 battery lead
• CHARGE CONNECTOR (INPUT): O-31 battery lead with M6 (1/4”) rings / eyelets OR 2-pinSAE (if disconnected from O-31).
• POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.
• CHARGE CONNECTOR (OUTPUT): 1x USB
• POWER (OUTPUT): 3300mA @ 5V
• CABLE RATING: SPT-1
• USE: -20°C/-4°F very low temperature, remains flexible at ‘below freezing’ temperatures
• STYLE: Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB socket; use any USB cable, seals when inserted.
