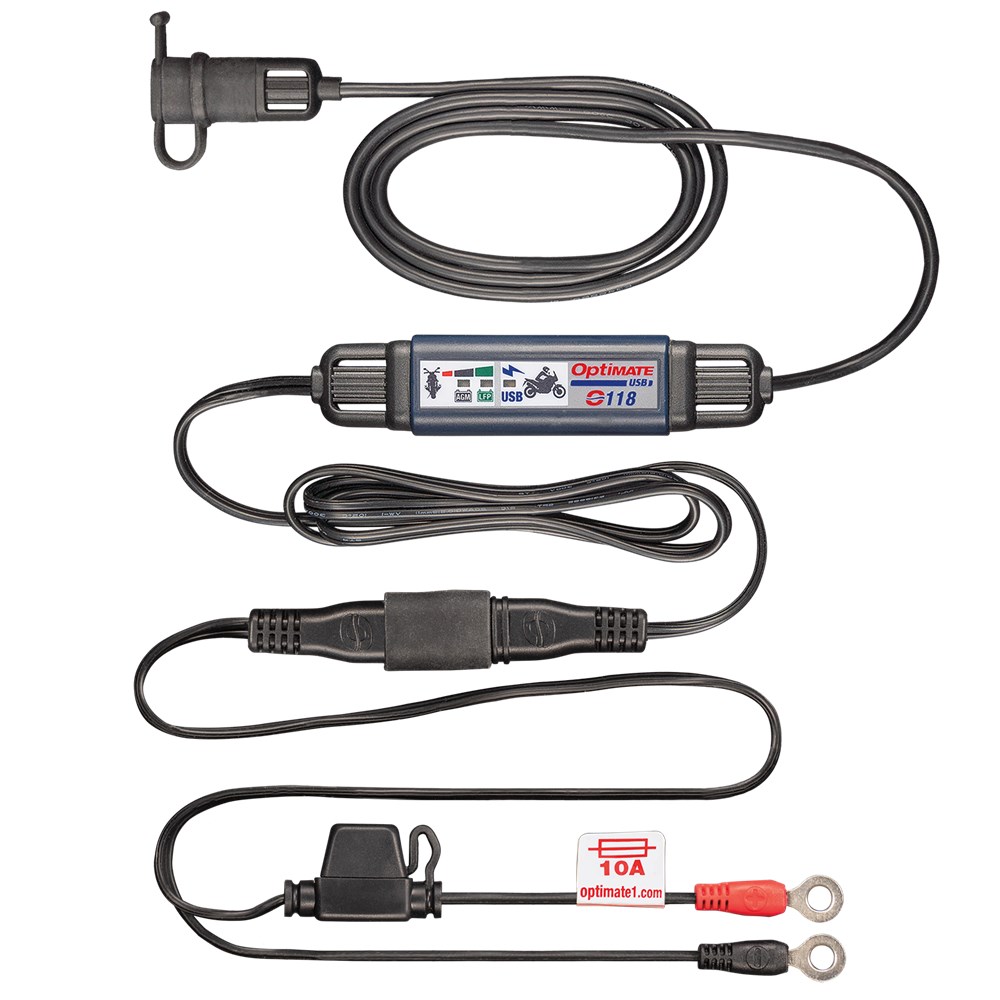

OptiMate USB O-118
Smart in-line 3300mA motorcycle USB-C charger, with standby mode and vehicle battery monitor.
Charge your phone, GPS, camera & tablet with your weatherproof charger, on your motorcycle or up to 80? / 200cm away from 12V supply.
• LENGTH: 80" / 200cm
• CHARGE CONNECTOR (INPUT): O-31 battery lead with M6 (1/4”) rings / eyelets OR 2-pin SAE (if disconnected from O-31).
• POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.
• CHARGE CONNECTOR (OUTPUT): 1x USB
• POWER (OUTPUT): 3300mA @ 5V
OPERATION: fully automatic
• Vehicle battery protection: Low input (<12.4V) auto-off protects vehicle battery from total discharge. Supply range: 12.4 to 16Vdc.
• Turns on if vehicle battery voltage increases above 13.3V.
• 2 LED battery monitor
• Short circuit, overheat, over-voltage protection. O-31 battery lead includes in-line fuse.
OPERATION (Voltage):
• USB ON - 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.
• USB 1 HOUR - 12.4V to 13.3V – 1-hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V.
• STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.
• AGM / LFP MONITOR - LED blink every 5 seconds if battery charge = 50% , sufficient to start vehicle engine.
• LED LFP: 13.1V to 13.3V.
• LED AGM: 12.4V to 13.1V.
• NO LED < 12.4V.
• OFF = 9V
CABLE RATING: SPT-1
USE: -20°C/-4°F very low temperature, remains flexible at ‘below freezing’ temperatures
STYLE: Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB socket; use any USB cable, seals when inserted.
