OptiMate MONITOR O-125
Battery status / charge system monitor for 12V lead-acid & 12.8V lithium-ion, with in-line SAE connectability.

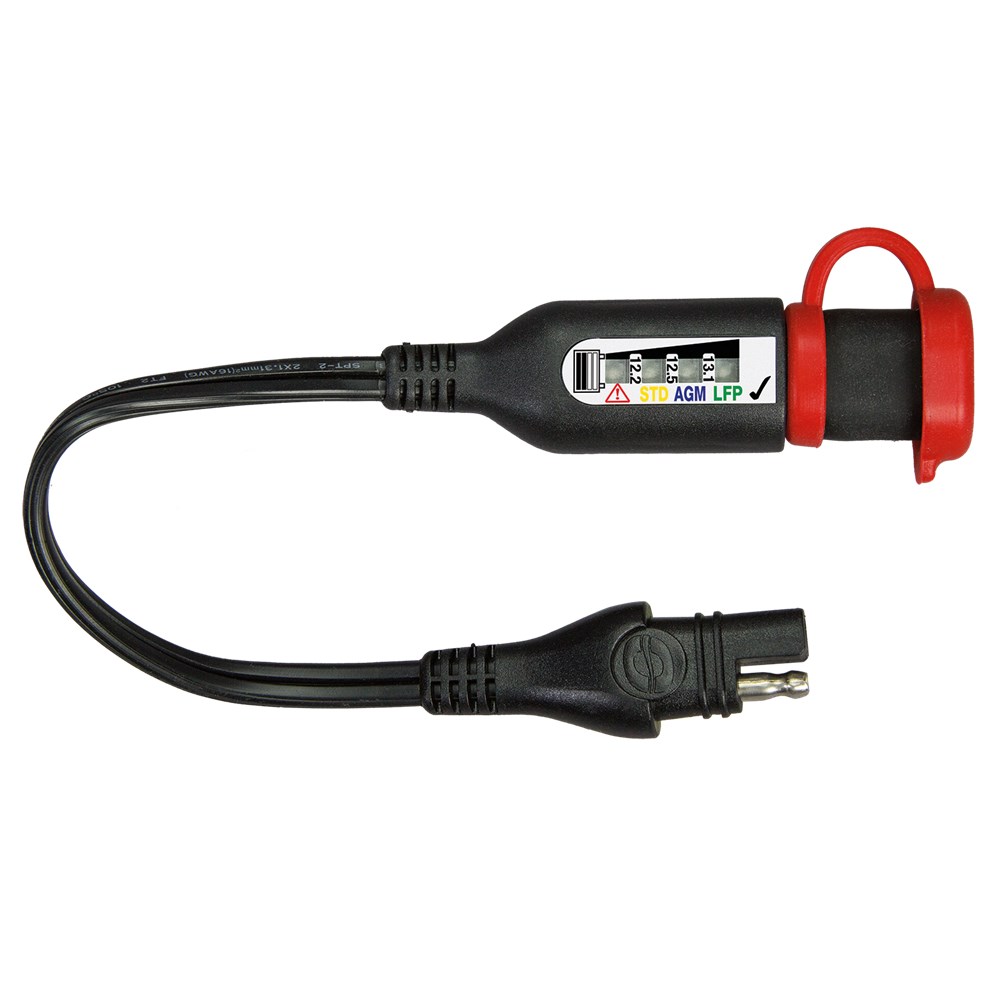

SAE to SAE adapter with state of charge monitor that connects directly to the SAE battery lead fitted to the 12V battery in your parked powersport vehicle.
Smart battery lead that measures voltage; monitors charge of a stored 12V lead-acid & 12.8V lithium-ion battery and confirms if the vehicle charging system is working correctly.
• LENGTH: 6?/15cm
• BATTERY CONNECTOR: 2-pin SAE ringlets
• CHARGE CONNECTOR: 2-pin SAE, protected from dirt and liquid with rubber sealing cap & shroud.
• OPERATION: 2 automatic Modes – Battery charge level monitor (single LED blink mode) & Charging system test (arrow mode).
• Vehicle storage: 4 LEDs cover ‘full to empty’ voltage range of all 12V batteries, including higher voltage AGM for power sport (3th v LED = 12.7V). LED matching charge level blinks every 3 seconds (long term draw less than 0.2mA).
• Vehicle running: LED arrow mode activates when charge voltage reaches ideal charging voltage; up to minimum 13.5V or ideal range 14V+.
• CABLE RATING: 16AWG (1.31mm2) SPT-2W
• USE: -40°C/-40°F very low temperature, remains flexible at ‘below freezing’ temperatures
• STYLE: Fully enclosed electronic circuitry with 4 LEDs, SAE charge connector with rubber sealing cap & shroud
